M105
M105 Gearbox

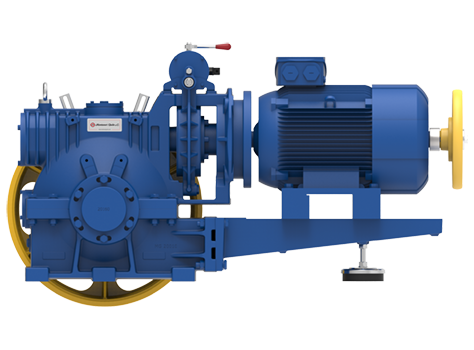

The new Montanari M105 gearbox, for lifts up to 9800 kg static load, without outer bearing. The M105 has no external support on the slow shaft which is guided at only two points inside the carter, and this allows the auxiliary brake to be installed directly on the shaft of the traction sheave. The machine is also available with a B3 type motor: flanged and with feet. As all Montanari gearboxes, M105 is modular to facilitate transport and assembly and thanks to the new support and guide system for the slow shaft, it is even quieter. The M105 has been thoroughly checked in the testing tower to simulate real operating conditions.
For quotation requests email: order@rwelevator.se
Description
Article no.: 20M105
Typical applications roping 1:1
1.600 kg – 2,5 m/s – 650 mm TP – 2/53 – 8 ropes of 13 – motor 30 kW
2.000 kg – 1 m/s – 650 mm TP – 1/49 – 8 ropes of 13 – motor 22 kW
Static load: 9.800 kg
Capacity: 3.000 kg 1:1
Reduction ratios: 1/71 – 1/65 – 1/49 – 2/63 – 2/53 – 4/67
Oil capacity: 16,5 l
Gearbox weight: M105 680 kg – M105B 834 kg
Motors: 50 & 60 Hz
VVVF 4 poli: 11 – 13 – 15 – 18,5 – 22 – 26 – 30 – 37 – 45 kW
VVVF 6 poli: 7,5 – 9 – 11 – 13 – 15 – 18,5 – 22 – 26 – 30 kW
AC2 4/16 poli: 13 – 15 – 18,5 – 22 – 26 – 30 – 37 – 45 – 55 kW
AC2 6/24 poli: 9 – 11 – 13 – 15 – 18,5 – 22 – 26 – 30 – 37 kW
