M109

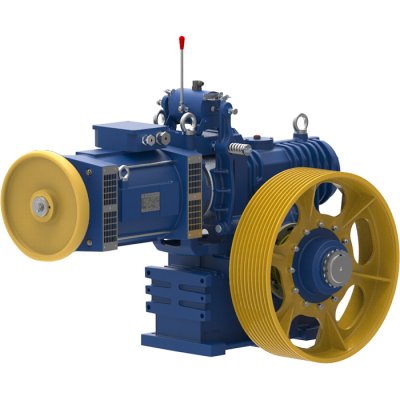

M109 Gearbox
15.000 kg of static load and more than 5.000 kg of capacity, M109 is the largest gearbox of the Montanari standard range. Its characteristics and reliability move some of the most important installations in the world.
For quotation requests email: order@rwelevator.se
Description
Article no.: 21M109
Typical application roping 1:1
1.600 kg – 2,5 m/s – 700 mm TP – 3/58 – 8 ropes of 13 – motor 44 kW
2.000 kg – 1,6 m/s –700 mm TP – 2/55 – 8 ropes of 15 – motor 37 kW
2.500 kg – 1 m/s – 650 mm TP – 1/49 – 8 ropes of 15 – motor 22 kW
3.000 kg – 2 m/s – 750 mm TP – 2/55 – 6 ropes of 16 – motor 55 kW
It can also be used for goods lifts (cargo) and for cars (vertical car parks or car dealership) roping 2:1 or 4:1.
Static load: 15.000 kg
Capacity: 5.000 kg 1:1
Reduction ratios: 1/64 – 1/49 – 2/55 – 3/58
Oil capacity: M109 – M109B3 38 l
Gearbox weight: M109 890 kg – M109B3 940 kg
Motors: 50 & 60 Hz
VVVF 4 poles: 15 – 18,5 – 22 – 26 – 30 – 37 – 44 – 55 – 62 – 75 – 90 kW
VVVF 6 poles: 15 – 18,5 – 22 – 26 – 30 – 37 – 44 – 55 – 62 kW
AC2 4/16 poles: 22,1 – 25,7 – 29,4 – 33,2 – 36,9 – 40,5 – 51 – 62 – 75 – 90 – 110 kW
AC2 6/24 poles: 16,2 – 19,5 – 23 – 26,5 – 30,5 – 35 – 40,5 – 42 – 49 – 51 – 62 – 75 kW
Contact us for more information, quotation request and order
