M50

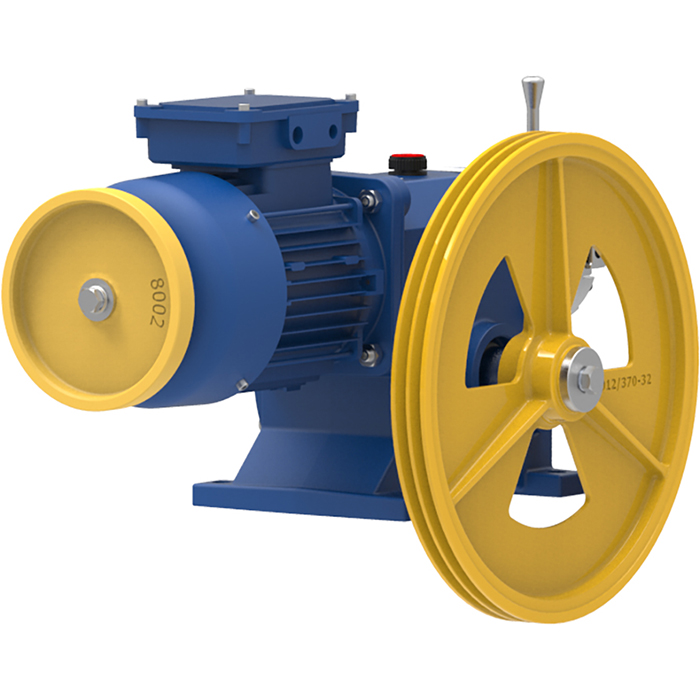

Gearbox M50
Small gearbox for projects having maximum static load of 750 kg and capacity of 274 Kg.
For quotation requests email: order@rwelevator.se
Description
Article no.: 10M50
Typical applications:
M50P – small lift installations (home lift). Motor 4-6 poles VVVF 1,1 kW.
M50N – service lift or dumbwaiter for restaurants, hotel, café, school or company canteens, etc.
M50T – drum version only for service lift installations. The standard drum has a diameter of 215 mm, the ropes diameter of 6 mm, 1 groove and travel height max 19 m. Special executions are also available according to the installation features.
Static load: up to 750 kg
Capacity: 274 kg 1:1
Reduction ratios: 1/53 – 1/41
Oil capacity: 1 l
Gearbox weight: 55 kg
Motors: 50 & 60 Hz
VVVF 4 poles: 3 kW
VVVF 6 poles: 3 kW
Contact us for more information, quotation request and order
