M65

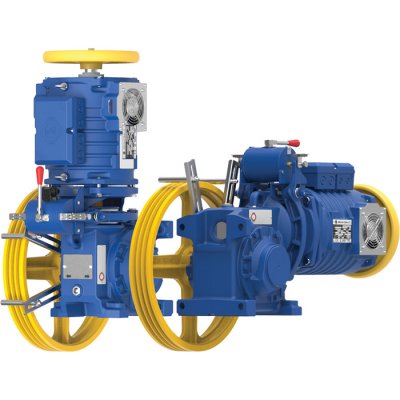

Gearbox M65
Versatile and compact gearbox.
Installation can be done vertically or horizontally. Available also in brake version. Suitable for lifts of 4/5 passengers for offices, residential and commercial buildings, condominiums, etc. It is appropriate for both new installations and modernization projects , compact and silent with side fans.
For quotation requests email: order@rwelevator.se
Description
Article no.: 11M65
Typical applications M65 roping 1:1
320 kg – 0,7 m/s – 480 mm TP – 1/50 – 3 ropes of 10 – motor 3kW
400 kg – 1,0 m/s – 480 mm TP – 1/37 – 4 ropes of 10 – motor 4kW
Download the product sheet for discovering all possible configurations.
Static load: 2.200 kg
Capacity: 400 kg 1:1
Reduction ratios: 1/63 – 1/50 – 1/46 – 1/37 – 2/46
Oil capacity: 2 l – synthetic
Gearbox weight: 80 kg
Motors: 50 & 60 Hz
VVVF 4 poles: 3 – 4 – 5,5 kW
VVVF 6 poles: 3 – 4 kW
AC2 4/16 poles: 3 – 4 – 4,5 – 5 kW
Contact us for more information, quotation request and order
Files and media
 | User Manual SE |
| Catalog |
| Certificate |
| User Manual ENG |
