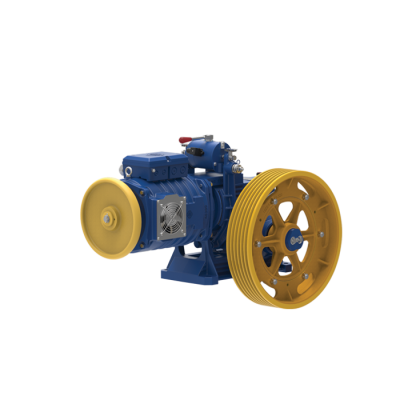

M75 RANGE

Range: M75 – standard, static load of 2000 kg M75H – for high static load without support, static load of 2700 kg M75S – with support, static load of 3200 kg M75AL– long shaft, static load of 2500 kg M75B – with auxiliary brake M75HB – for high static load without support + auxiliary brake Typical application roping 1:1 630 kg – 1,0 m/s – 480 mm TP – 1/37 – 6 ropes of 10 – motor 7,5 kW Static load: from 2.000 to 3.200 KG Capacity: 630 kg 1:1 Reduction ratios: 1/52 – 1/50 – 1/37 – 2/55 – 2/37 Oil capacity: 2,8 l – synthetic Gearbox weight: M75 – M75H 115 kg – M75S 120 kg – M75AL 150 kg Motors: 50 & 60 Hz VVVF 4 poles: 3 – 4 – 5,5 – 7,5 kW VVVF 6 poles: 3 – 4 – 5,5 kW AC2 4/16 poles: 3 – 4 – 4,5 – 5 – 5,5 – 6 – 6,5 – 7,5 kW AC2 6/24 poles: 3 – 4 – 4,5 – 5 kW Contact us for more information, quotation request and order
