MontanariLift GearboxesM83-M85 RANGE
M83-M85 RANGE

M83-M85 RANGE

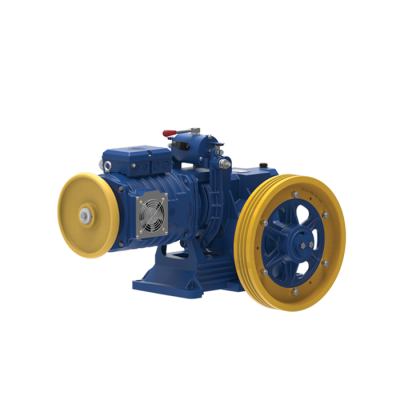

M83-M85 RANGE High number of ratios, suitable for installations up to 10 passengers or for lifting heavy goods. M83 range reaches up to 4.000 kg of static load and 800 kg of capacity.
Read more...

    For quotation requests email: order@rwelevator.se

    Description

    Article no.: 16M83-M85 RANGE

    Static load: from 3.200 to 4.000 kg Capacity: 800 kg 1:1 Reduction ratios: 1/69 – 1/60 – 1/50 – 1/43 – 1/37 – 2/42 – 2/50 Oil capacity: 4,5 l Gearbox weight: M83 – M83B 169 kg- M83AL 199 kg – M85 181 kg Motors: 50 & 60 Hz VVVF 4 poles: 3 – 4 – 5,5 – 7,5 – 9 – 11 kW VVVF 6 poles: 3 – 4 – 5,5 – 7,5 kW AC2 4/16 poles: 3 – 4 – 4,5 – 5 – 5,5 – 6 – 6,5 – 7,5 – 9 – 11 kW AC2 6/24 poles: 3 – 4 – 4,5 – 5 – 6 – 6,5 – 7,5 – 9 kW Contact us for more information, quotation request and order
