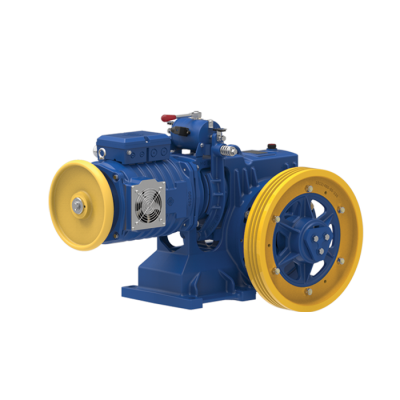

M93-M95 RANGE

Range: M93 – standard, static load of 5000 kg M93AL– long shaft, static load of 3600 kg M93B – with auxiliary brake M95 – with support, static load of 5000 kg Typical application roping 1:1 1.250 kg – 1 m/s – 520 mm TP – 1/39 – 6 ropes of 13 – motor 13 kW 1.000 kg – 1 m/s – 550 mm TP – 1/43 – 6 ropes of 13 – motor 11 kW 1.000 kg – 1,6 m/s – 520 mm TP – 2/49 – 6 ropes of 11 – motor 15 kW 800 kg – 1,6 m/s – 520 mm TP – 2/49 – 6 ropes of 11 – motor 13 kW It can also be used for goods lifts (cargo) and for cars (vertical car parks or car dealership) roping 2:1 or 4:1. Static load: 5.000 kg Capacity: 1250 kg 1:1 Reduction ratios: 1/62 – 1/50 – 1/43 – 1/39 – 2/49 – 3/47 – 4/51 Oil capacity: 6 l Gearbox weight: M93 – M93B 250 kg – M93AL 329 kg – M95 253 kg Motors: 50 & 60 Hz VVVF 4 poles: 5,5 – 7,5 – 9 – 11 – 13 – 15 – 18,5 – 22 kW VVVF 6 poles: 4 – 5,5 – 7,5 – 9 – 11 – 13 kW AC2 4/16 poles: 6,5 – 7,5 – 9 – 11 – 13 – 15 – 18,5 – 22 kW AC2 6/24 poles: 4,5 – 5 – 5,5 – 6 – 6,5 – 7,5 – 9 – 11 – 15 kW Contact us for more information, quotation request and order
