PENTA 830

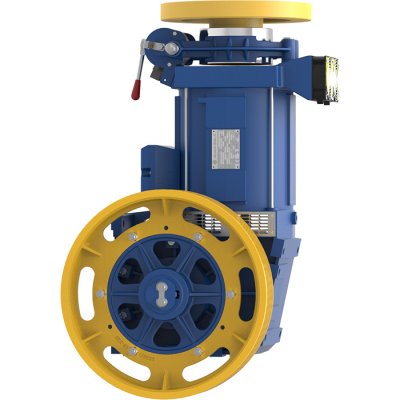

PENTA 830 Gearbox
Penta design for higher capacities. 830 Penta model ensures flexibility and versatility for lifts of 10 passengers. Appropriate for installations in hotels, condominiums, public buildings, etc.
For quotation requests email: order@rwelevator.se
Description
Article no.: 17PENTA 830
Static load: 3.200 kg
Capacity: 800 kg 1:1
Reduction ratios: 1/50 – 1/37 – 2/42 – 3/43
Oil capacity: 5 l
Gearbox weight: 180 kg
Motors: 50 & 60 Hz
VVVF 4 poles: 3 – 4 – 5,5 – 7,5 – 9 – 11 – 13 kW
VVVF 6 poles: 3 – 4 – 5,5 – 7,5 kW
AC2 4/16 poles: 3 – 4 – 4,5 – 5 – 5,5 – 6 – 6,5 – 7,5 – 9 – 11 – 13 – 15 kW
AC2 6/24 poles: 3 – 4 – 4,5 – 5 – 6 – 6,5 – 7,5 – 9 kW
Contact us for more information, quotation request and order
