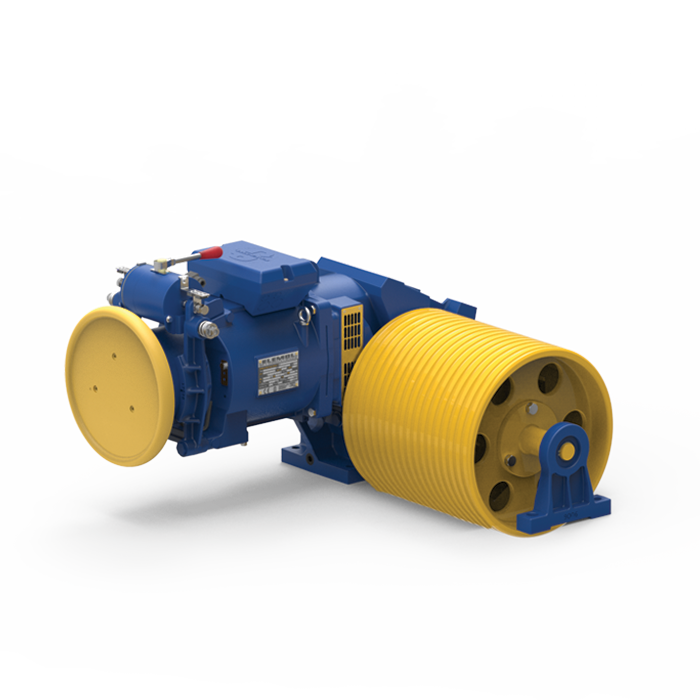

PENTA T
Gearbox with drum PENTA T
PentaT Montanari gearbox with drum for lifts without counterweight.
For quotation requests email: order@rwelevator.se
Description
Article no.: 62PENTA T
Installation features:
Top or down
Right or left hand
Parallel or converging worms
The cylinder of the drum is available in 4 different sizes according to the winding ( ride and extraride).
Maximum winding (ride and extraride) equal to 27 meters for drum 400 mm.
Ropes diameter 9, 10 mm.
Available also with double drum.
Capacity / Traction force: 500 kg max
Reduction ratios: 1/50
Oil capacity: 3 l sintetico
Gearbox weight: 210 kg
Motor: VVF 4 poles / 5,5 kW – AC2 4/16 poles / 6,6 kW
