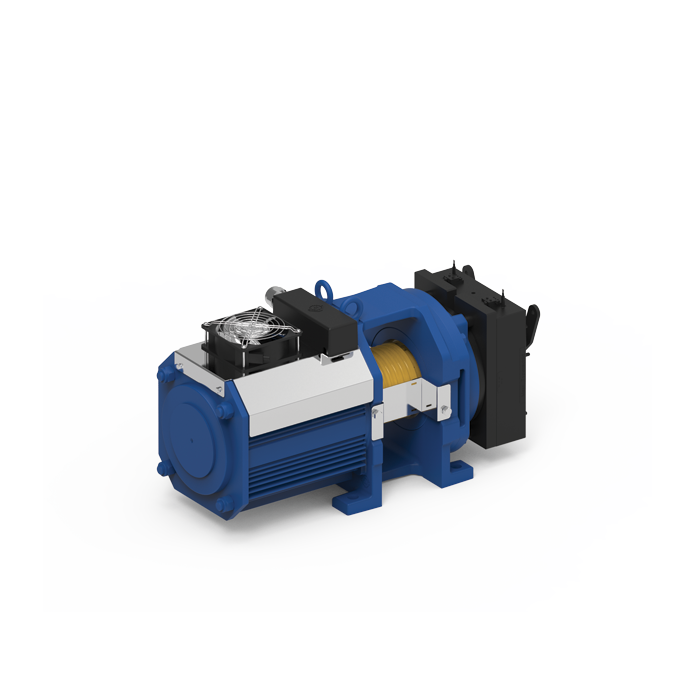

MGV20M

Key features: Torque moment: 200Nm – S5-40%ED – 180 s/h. Central pulley. Cooling fan. For installations reporting a static load up to 3.000 kg and capacities up to 1.000 kg max roping 2:1. Provided with levers for manual release, power cable already connected and encoder cable. (Special connector on request). Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety. The mechanically redundant brake with double magnetic circuit is certified for excessive speed uphill and against uncontrolled movements of the cab. Typical application: 1:1 – 320 kg – traction pulley 210 mm 1:1 – 480 kg – traction pulley 120 mm 2:1 – 480 kg – traction pulley 210 mm 2:1 – 630 kg – traction pulley 160 mm Static load: 3.000 kg max Capacity: 1.000 kg max 2:1 Torque moment: 200 Nm – S5-40%ED – 180 avv/h. Traction pulley: 120 – 160 – 210 – 240 mm Gearless weight: 125 kg Voltage: 360 – 210 V Encoder: ENDAT – SINCOS – SSI – BISS Contact us for more information, quotation request and order
