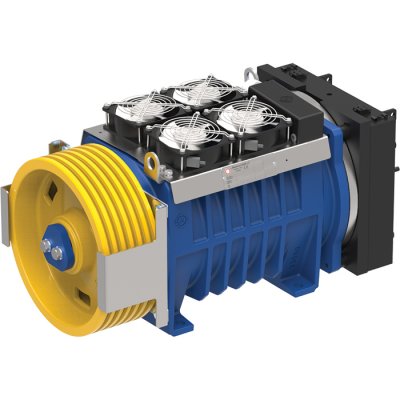

MGV25L

Key features: Torque moment: 630 Nm – S5 – 40%ED – 180 s/h. For installations reporting a static load up to 3.400 kg and capacities up to 1.600 kg roping 2:1 Cooling fans Cantilevered pulley. It is possible to request special pulleys up to 600 mm. Provided with levers for manual release, power cable already connected and encoder cable. (Special connector on request). Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety. The mechanically redundant brake with double magnetic circuit is certified for excessive speed uphill and against uncontrolled movements of the cab. Typical application: Machine Roomless 2:1 – 1.600 kg – traction pulley 240 mm – 2 m/s 2:1 – 1.200 kg – traction pulley 320 mm – 2 m/s Static load: 3.400 kg Capacity: 1.600 kg 2:1 Torque moment: 630 Nm – S5 – 40%ED – 180 avv/h Pulley: 210 – 240 – 320 mm Gearless weight: 220 kg Voltage: 360 – 210 V Encoder: ENDAT – SINCOS – SSI – BISS Contact us for more information, quotation request and order
