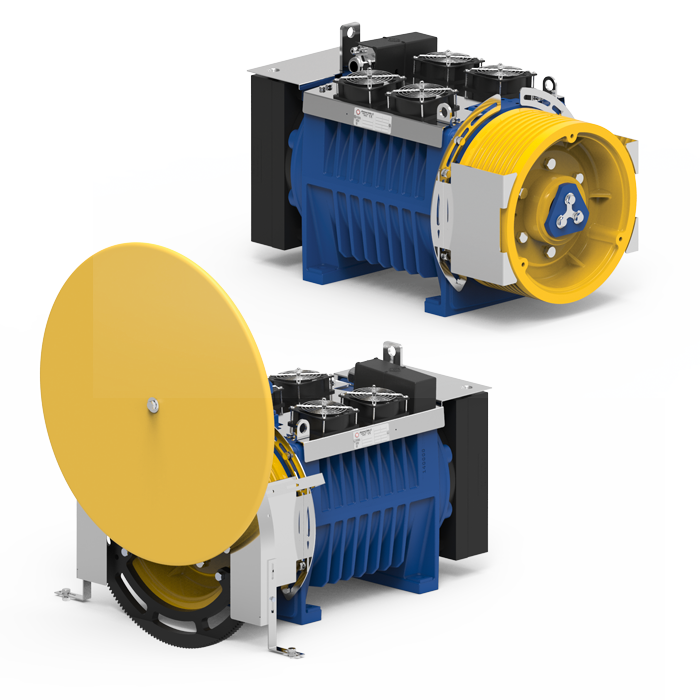

MGV34M

Key features: Torque moment: 1050 Nm – S5 – 40ED – 180 s/h. For installations reporting a static load up to 5,000 kg and capacities up to 2,000 kg, 3 m/s roping 2:1. Use with or without machine room. Discover the MR Switch Kit. Cooling fans. Cantilevered pulley. Brake levers & remote control for emergency operations supplied as standard. For machine roomless version, provided with power cable already connected and encoder cable. (Special connector on request). Pulleys with different dimensions of that listed in the catalogue, upon request. Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety. The mechanically redundant brake with double magnetic circuit is certified for excessive speed uphill and against uncontrolled movements of the cab. Typical application: Machine Room & Roomless 2:1 – 2,000 kg – 320 mm Traction pulley 2:1 – 1,600 kg – 400 mm Traction pulley 2:1 – 1,250 kg – 520 mm Traction pulley Static load: 5,000 kg downward load; 3,500 kg lateral & upward load Maximum range: 2,000 kg 2:1 Torque moment: 1050 Nm – S5 – 40ED – 180 av/h Pulley: 240 – 320 – 400 – 480 – 520 mm Gearless weight: 566 kg Voltage: 360 – 210 V Encoder: ENDAT – SINCOS Contact us for more information, quotation request and order
