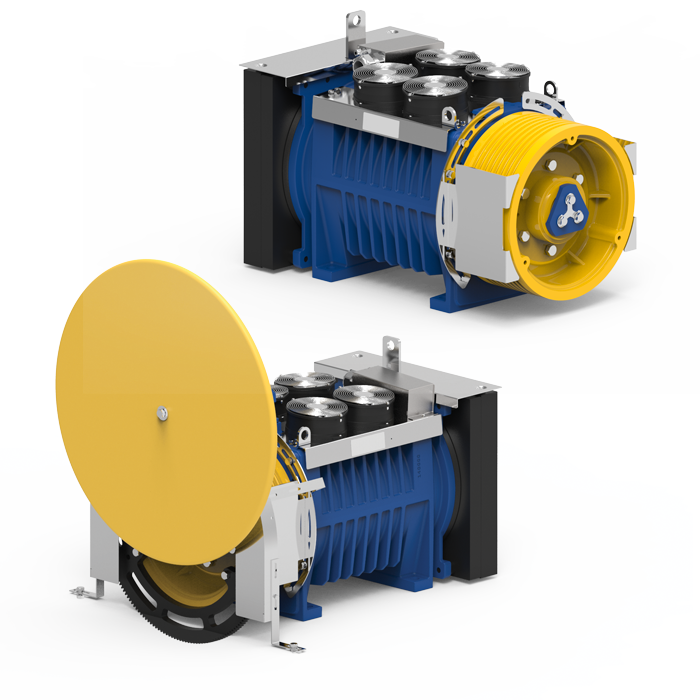

MGV34ML

Key features: Torque moment: 1400 Nm – S5 – 40%ED – 180 s/h. For installations reporting a static load up to 6.500 kg and capacities up to 2.500 kg roping 2:1 Use with or without machine room. Discover the MR Switch Kit. Cooling fans. Cantilevered pulley. Brake levers & remote control for emergency operations supplied as standard. For machine roomless version, provided with power cable already connected and encoder cable. (Special connector on request). Pulleys with different dimensions of that listed in the catalogue, upon request. Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety. The mechanically redundant brake with double magnetic circuit is certified for excessive speed uphill and against uncontrolled movements of the cab. Typical application: Machine Room & Roomless 2:1 – 2.500 kg – traction pulley 320 mm 2:1 – 2.000 kg – traction pulley 400 mm 2:1 – 1.600 kg – traction pulley 520 mm Static load: 6,500 kg downward load; 3,500 kg lateral & upward load Maximum range: 2,500 kg 2:1 Torque moment: 1400 Nm – S5 – 40%ED – 180 avv/h Pulley: 320 – 400 – 480 – 520 mm Gearless weight: 623 kg Voltage: 360 – 210 V Encoder: ENDAT – SINCOS – SSI – BISS Contact us for more information, quotation request and order
