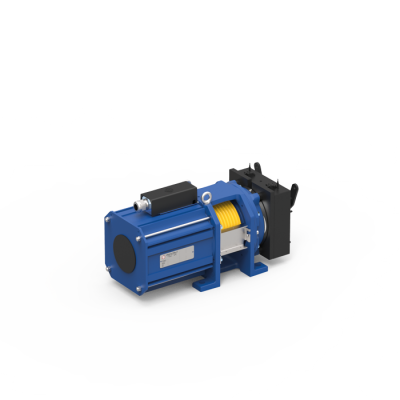

MGX19

Key features: Torque moment: 125 Nm – S5 – 25%Ed – 180 s/h Central pulley For installations reporting a static load up to 2.000 kg and capacities up to 630 kg roping 2:1 Provided with levers for manual release, power cable already connected and encoder cable. (Special connector on request). Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety. The mechanically redundant brake with double magnetic circuit is certified for excessive speed uphill and against uncontrolled movements of the cab. Typical application: 1:1 – 250 kg – traction pulley 160 mm 1:1 – 320 kg – traction pulley 120 mm 2:1 – 630 kg – traction pulley 120 mm 2:1 – 400 kg – traction pulley 160 mm Static load: 2.000 kg Capacity: 630 kg max 2:1 Torque moment: 140 Nm – S5 – 25%ED – 180 avv/h Traction pulley: 120 – 160 mm Gearless weight: 80 kg Voltage: 360 – 210 V Encoder: ENDAT – SINCOS – SSI – BISS Contact us for more information, quotation request and order
