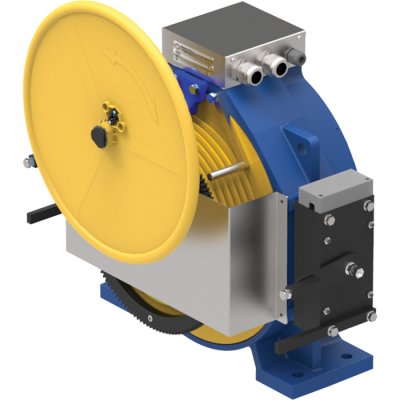

MGX75

Key features: Torque moment: 325 Nm – S5 – 40%ED – 180 s/h. For installations reporting a static load up to 1.600 kg and capacities up to 630 kg, 2 m/s roping 2:1 Through the lever system for brake release, just one operator can perform emergency operations. Flywheel for emergency operations. Provided with levers for manual release, power cable already connected and encoder cable. (Special connector on request). Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety. The mechanically redundant brake with double magnetic circuit is certified for excessive speed uphill and against uncontrolled movements of the cab. Typical application: Machine Room 2:1 – 630 kg – traction pulley 320 mm Static load: 1.600 kg downward load; Capacity: 630 kg 2:1 Torque moment: 325 Nm – S5 – 40%ED – 180 avv/h Pulley: 320 mm Gearless weight: 190 kg Voltage: 360 – 210 V Encoder: ENDAT – SINCOS – SSI – BISS Contact us for more information, quotation request and order
