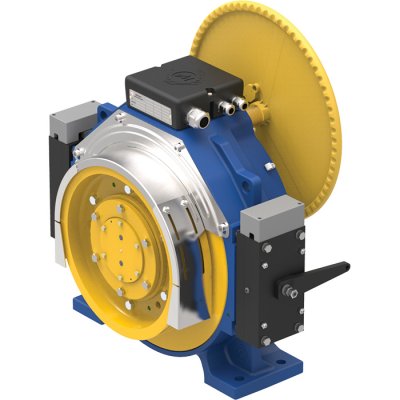

MGX80

Key features: Torque moment: 670 Nm – S5 – 40%ED – 180 s/h. For installations reporting a static load up to 3.000 kg and capacities up to 1.000 kg roping 2:1 Through the lever system for brake release, just one operator can perform the emergency operations. Flywheel for emergency operations. Provided with levers for manual release, power cable already connected and encoder cable. (Special connector on request). Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety. The mechanically redundant brake with double magnetic circuit is certified for excessive speed uphill and against uncontrolled movements of the cab. Typical application: Machine Room 2:1 – 1.000 kg – traction pulley 400 mm 2:1 – 800 kg – traction pulley 480 mm Static load: 3.000 kg downward load; Capacity: 1.000 kg 2:1 Torque moment: 670 Nm – S5 – 40%ED – 180 avv/h Pulley: 400 – 480 mm Gearless weight: 330 kg Voltage: 360 – 210 V Encoder: ENDAT – SINCOS – SSI – BISS Contact us for more information, quotation request and order
